Leebex Metals manufactures copper products that are abreast with forward as well as backward integration techniques.
COPPER BUSBARS & STRIPS - OFC & ETP GRADE | ||
---|---|---|
Dimension Details | ||
Width | Thickness | |
10 mm - 50 mm | 1 mm - 25 mm | |
10 mm - 100 mm | 2 mm - 25 mm | |
10 mm - 150 mm | 3 mm - 25 mm | |
10 mm - 200 mm | 5 mm - 12 mm | |
Standards: - | IS:191, 613 & 1897, BS EN 13601:2013 | |
Electrical Conductivity: - (% IACS) | Above 100% in Soft, Above 98.5% min in Half Hard / Hard | |
Specifications (OFC): - | Cu : 99.95%, 02<10ppm | |
Specifications (ETP): - | Cu : 99.90%, 02<400ppm | |
Supply Condition: - | Straight length & coils | |
Electro Plating | Tin / Silver / Nickel, Plating Range 6 micron to 20 micron | |
Packaging | Cut to 1 to 4.5 meters length, Packed in Pallet / Wooden box |
COPPER ROUND / COPPER HEX / COPPER SQUARE – ETP GRADE | |
---|---|

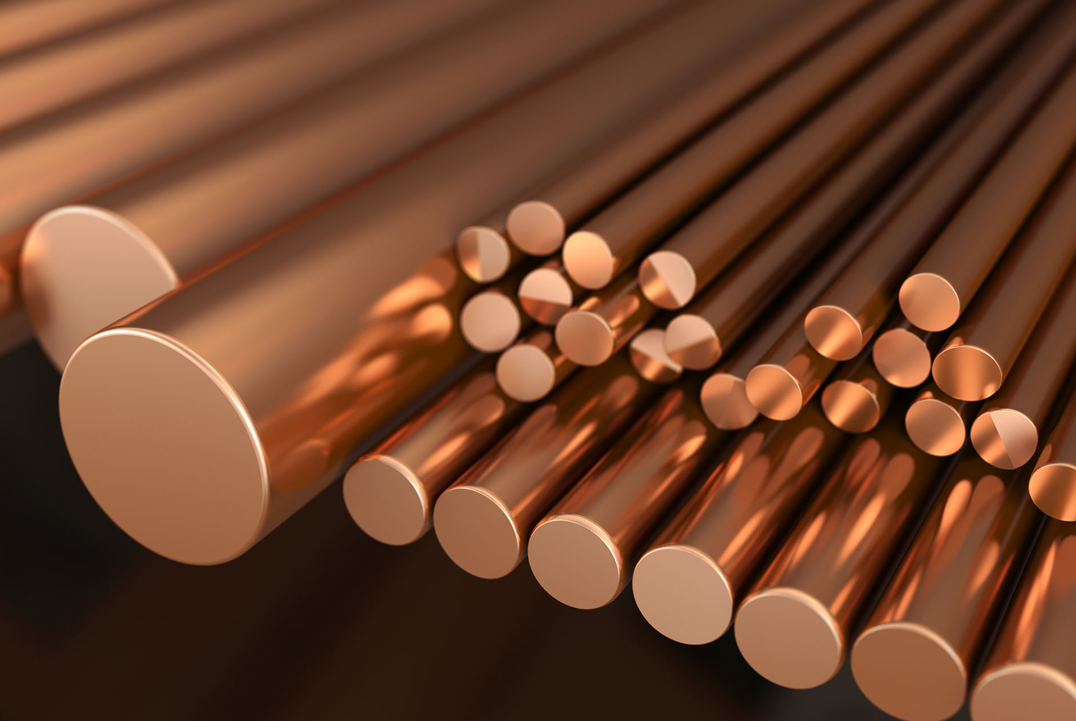

COPPER ROUND | ø 7 mm to 120 mm |

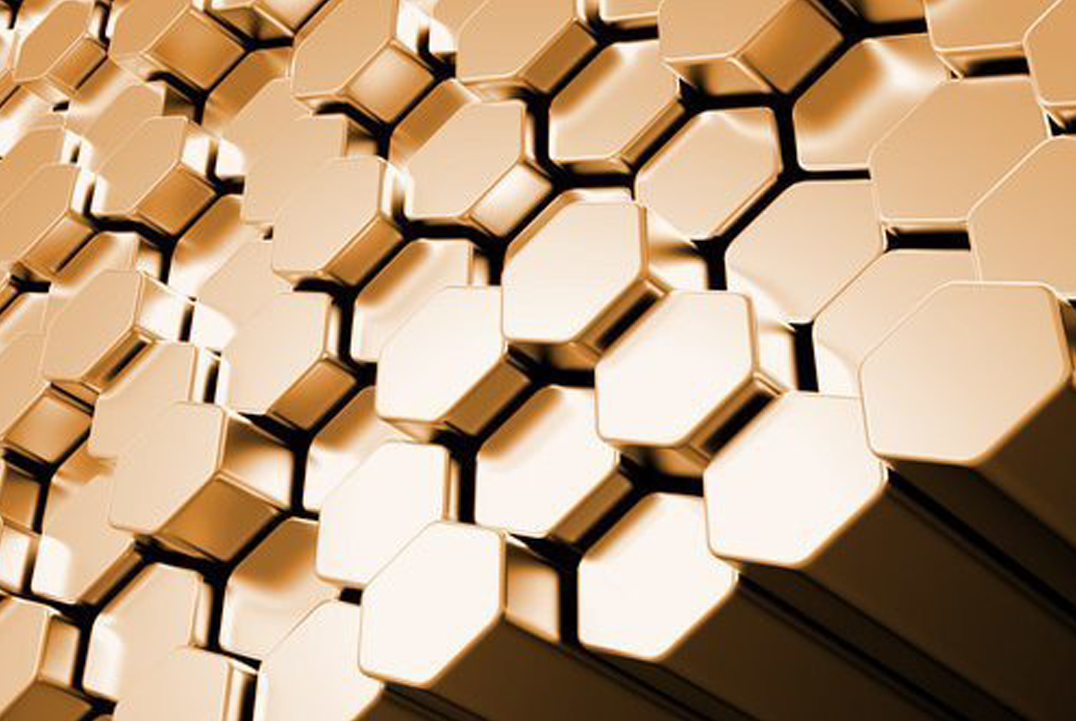

COPPER HEX | ø 8 mm to 50 mm |

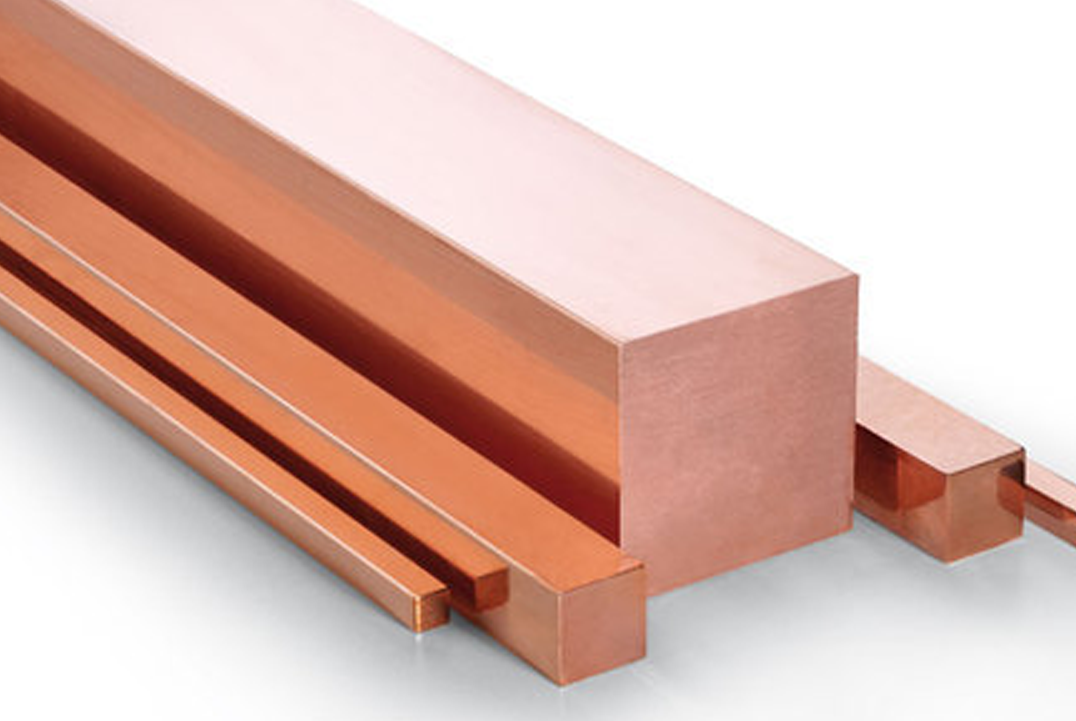

COPPER SQUARE | 10*10 mm to 60*60 mm |
Standards: - | IS: 191, 613 & 1897, BS EN 13601:2013 |
Electrical Conductivity: - (% IACS) | 98.5% min |
Specifications: - | Cu : 99.90%, 02<400ppm |
